LETON POWER Diesel Welding Generator set for welding working
- kVA Range
- 3-10
- Frequency
- 50/60Hz
- Voltage Range
- 110-380
- Brand
- LETON POWER

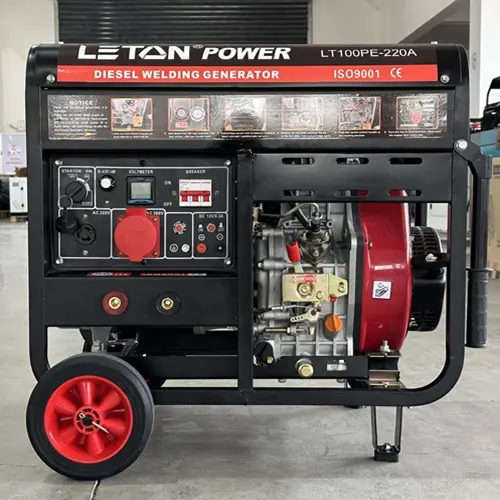

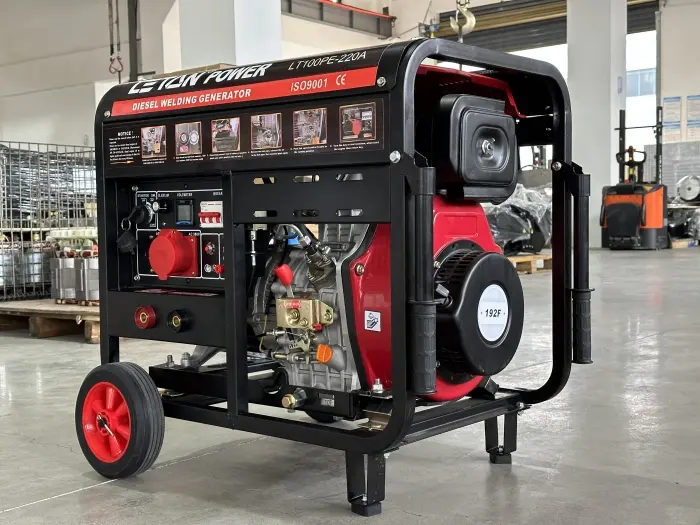

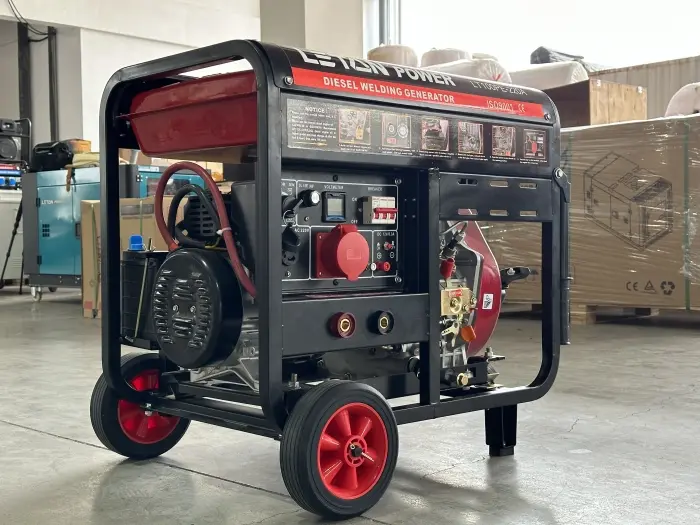

This is our dual function generator, which can be used as both a generator and for our welding work. It has the advantages of being lightweight, compact, and having stable output. with dual-frequency compatibility (50/60Hz) and flexible voltage options (110-415V). Engineered for endurance, they operate continuously for 10-15 hours on a 40L fuel tank while maintaining ultra-low noise levels (70-75dB at 7m).
Standard safeguards include oil/temperature alarms, circuit breakers, and speed protectors, with optional ATS and wooden packaging for tailored solutions. Compact dimensions and rugged construction ensure seamless integration into trucks or vans, making them ideal for commercial fleets, emergency services, and off-grid operations.
Get Product Brochure >GENERATOR
Frequency(Hz):Max.output(A)Rated output(A)Voltage(V)Power factor(cosΦ)DC output(V/A)PhaseAlternator typeStarting systemNoise level(at 7m)(dB)Fuel tank capacity(L)Continuous work(h)Model
Engine typeBore*stroke(mm)Displacement capacity(CC)Lubrication oil volume(L)Combustion systemDIMENSIONS
Dimension(L*W*H)(mm)Gross weight(kg)STANDARD FEATURES

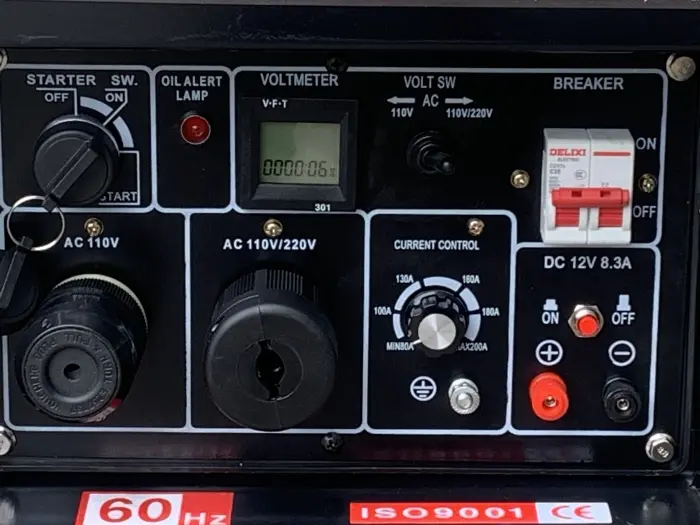

VoltmeterAC output socketAC circuit breakerOil warning lightOil alertOPTIONAL FEATURES
Big wheelThree phase voltageCurrent meterATSRemote controlWelding
GENERATOR
Frequency(Hz):Max.output(A)Rated output(A)Voltage(V)Power factor(cosΦ)DC output(V/A)PhaseAlternator typeStarting systemNoise level(at 7m)(dB)Fuel tank capacity(L)Continuous work(h)Model
Engine typeBore*stroke(mm)Displacement capacity(CC)Lubrication oil volume(L)Combustion systemDIMENSIONS
Dimension(L*W*H)(mm)Gross weight(kg)STANDARD FEATURES
VoltmeterAC output socketAC circuit breakerOil warning lightOil alertOPTIONAL FEATURES
Big wheelThree phase voltageCurrent meterATSRemote controlWelding
GENERATOR
Frequency(Hz):Max.output(A)Rated output(A)Voltage(V)Power factor(cosΦ)DC output(V/A)PhaseAlternator typeStarting systemNoise level(at 7m)(dB)Fuel tank capacity(L)Continuous work(h)Model
Engine typeBore*stroke(mm)Displacement capacity(CC)Lubrication oil volume(L)Combustion systemDIMENSIONS
Dimension(L*W*H)(mm)Gross weight(kg)STANDARD FEATURES
VoltmeterAC output socketAC circuit breakerOil warning lightOil alertOPTIONAL FEATURES
Big wheelThree phase voltageCurrent meterATSRemote controlWelding
Model No. LT60PE-200A LT100PE-250A LT150PE-350A Rated welding Current (A)额定电焊电流 200 250 350 Welding voltage(DC)(V)电焊电压 24-30 24-32 25-33 Welding current range(A)电焊电流范围 50-200 50-250 50-350 Applicable Electrode中(mm)适用焊条 2.5-4.0 2.5-5.0 2.5-6.0 Duty cycle电焊持续率 0.6 0.6 0.6 Phase相数 Single Phase/Three Phase Single Phase/Three Phase Single Phase/Three Phase AC Frequency(Hz)频率 50/60Hz 50/60Hz 50/60Hz Rate Output(KW)额定输出功率(KW) 5.0/6.0 8.0/8.5 9.0/10.0 Rate Output Voltage(V)额定电压 110-450 110-450 110-450 Power Factor功率因数 1.0/0.8 1.0/0.8 1.0/0.8 Engine Model发动机型号 GF188F GF195F GF292 Max.0utpput(HP)发电机最大功率 12 14 22 Displacement(cc)排量(cc) 438 530 997 Engine Type发动机类型 4-stroke air-cool diesel engine 4-stroke air-cool diesel engine 4-stroke air-cool diesel engine No. of Engine cylinders 发动机缸数 Single-cylinder,Vertical Single-cylinder,Vertical Dual cylinder, V-type Compression ratio压缩比 0.834027778 0.834027778 0.834027778 Starting System启动方式 Recoil/Electric Electric Electric Lubrication System润滑系统 Forced Lubrication Forced Lubrication Forced Lubrication Fuel Tank油箱容量(L) 15 15 25 0iI Capacity机油容量(L) 1.65 2 4 Noise Level(Db/7m)噪音等级(7米以内L) 78 78 78 Packing Dimensions(mm)包装尺寸(mm) 750X525X630 780X580X750 1100X740X1055 Gross Weight(kg) 105 135 295
LETON POWER STANDBY DIESEL GENERATOR
CHOOSE THE RIGHT ONE FOR YOU
The following are our popular standby generators. In addition to these, we can customize them according to your needs. Please consult us！
Kama diesel generator
AIR COOLING TYPE
power range：3-10kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
Silent diesel generator
AIR COOLING TYPE
power range：10-13kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
Super silent diesel generator
AIR COOLING TYPE
power range：13-20kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
QUANCHAI 2 CYLINDER GENERATOR
WATER COOLING TYPE
power range：15-25kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
YAMAHA TYPE DIESEL GENERATOR
WATER COOLING TYPE
power range：15-30kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
QUANCHAI 4 CYLINDER GENERATOR
WATER COOLING TYPE
power range：15-30kva
Frequency：50/60HzPhase：1/3PhaseOptional:ATS
